BMW 120D "Diesel" Race Car equipped with four 9X17" rims.

384 Sicherungsstift Metalore Securing pin E89

387 Radmutter Re-Gew./rh thre WHEEL NUT E89

388 Radmutter li-Gew/lh thr. WHEEL NUT E89

123 Reifen Dunlop GT3 285/660R18 Tires Dunlop E89

124 Reifen Dunlop GT3 300/680R18 Tires Dunlop E89

248 Felge vorne 12x18 ET12 nero WHEEL RIM FRONT E89

249 Felge hinten 13x18 ET24 nero WHEEL RIM REAR E89

626 Bolzen Pin E89

OPTIONAL

554 Scheibenrad Leicht 11x18" ET10 ALLOY RIM FORGED E89

555 Scheibenrad Leicht 11,5x18" ET-5 ALLOY RIM FORGED E89

500 Scheibenrad Leicht 9,5x18" ET25 ALLOY RIM FORGED

567 Scheibenrad Leicht 10x18" ET40 ALLOY RIM FORGED

558 Felge 10X18 ET-24 SWRim M235iR

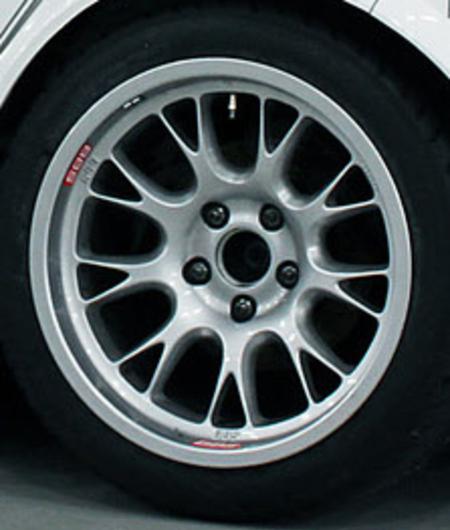

BBS Motorsport Racing Wheels for the BMW E46 M3 GT2

2000 to 2006 Light Weight Wheel

BBS Cross Spoke Motorsport Center Lock race car wheels available now.

Contact: PitCrew@ScottsdaleMotorsport.com

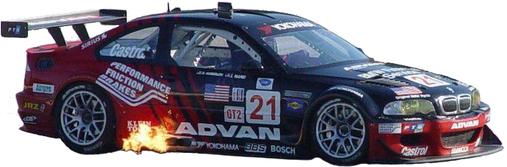

BBS Motorsport Racing Wheels for the 2001 BMW E46 M3 GTR

Light Weight

BBS RE594 / RE595 Motorsport Center Lock Race Car Wheels.

Contact: PitCrew@ScottsdaleMotorsport.com

BBS MOTORSPORT RACING WHEELS

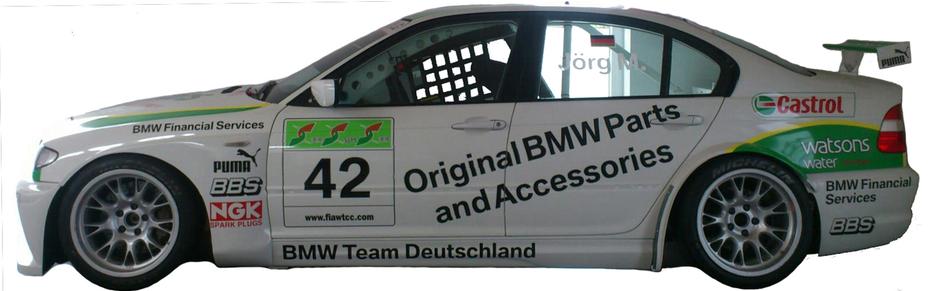

Scheibenrad Leicht BBS 9x17" ET-7 Light alloy rim BMW E46 ETCC/WTCC


Leichtmetallrad / BBS alloy rim 9x17 ET-10 4 (Gewicht min. / weight min = 9,00kg !) !

Radmutter Alu / wheel nut Alu (SW19) 20 (Montagehinweis beachten / see mounting instruction !) Die Montage der Radmuttern mit Kupferpaste (auf Gewinde und Konus) und Drehmomentschlüssel (100Nm) durchführen. Bei Verwendung eines Schlagschraubers auf 60Nm einstellen und dann mit Drehmomentschlüssel (100Nm) anziehen. Größere Anzugmomente können zum Ab The mounting of the wheel nuts has to be done by use of copper paste (on thread and cone) and a torque wrench (100Nm). When using a pneumatic wrench adjust to 60Nm and tighten afterwards with torque wrench (100Nm).

Greater torques might destroy the wheel.

Radbolzen / wheel bolt 63mm 20


AWT Spurverbreitung / CT wheel spacer ww

478 Spurverbreiterung / wheel spacer 5mm

479 Spurverbreiterung / wheel spacer 10mm

480 Spurverbreiterung / wheel spacer 15mm

102 Distanscheibe 5mm 2

103 Distanzscheibe 7,5mm 2

175 Zylinderschraube / cylinder screw 10.9 M8x20 4

BMW AG Motorsport F13 M6 GT3 BBS Race Car Rims


#22 Felge vorne WHEEL RIM FRONT 13X18" ET22
#23 Felge hinten WHEEL RIM REAR 13X18" ET22

BBS Motorsport Racing Wheels for the BMW F13 M6 GT3

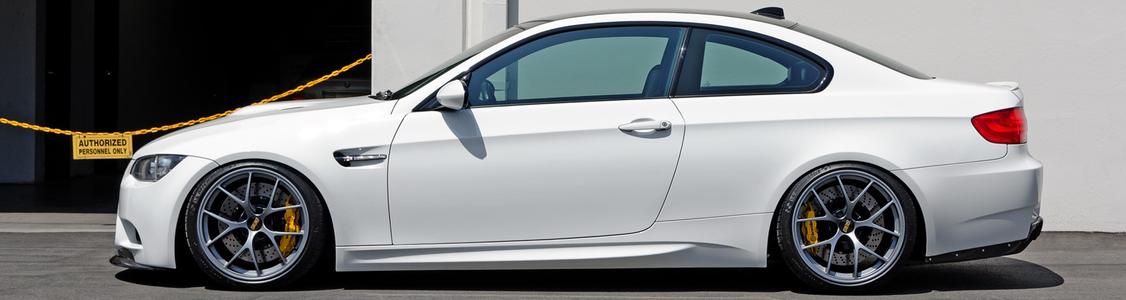

BBS STREET CAR WHEELS

BBS Motorsport Racing Wheels for the BMW 120D VLN

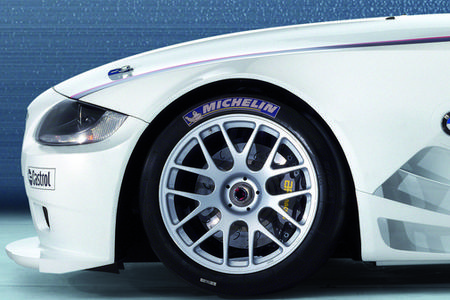

BBS Motorsport Racing Wheels for the BMW E86 Z4 VLN

BBS Motorsport Racing Wheels for the BMW E92 M3 GT

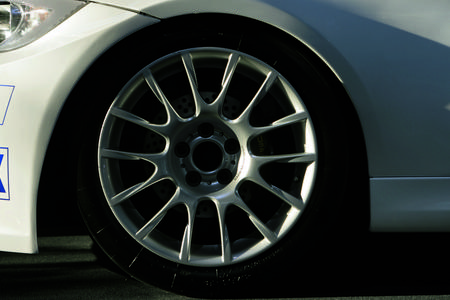

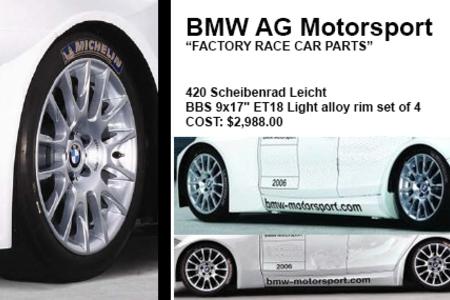

420 Scheibenrad Leicht BBS 9x17" ET18 Light alloy rim E90 Sedan 4 door 320i WTCC/ETCC

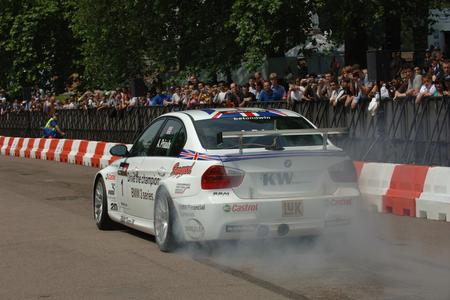

BBS Motorsport Racing Wheels for the BMW E90 320i WTCC/ETCC

BBS Motorsport Racing Wheels for the BMW M235iR

BBS Motorsport Racing Wheels for the BMW E89 Z4 GT3

Magnesium-Felge / Magnesium rim 7x15 ET10 4,8kg DTC
Magnesium-Felge / Magnesium rim 7x15 ET10 5,0kg SP

BBS Motorsport Racing Wheels for the BMW E46 320i

SCOTTSDALE MOTORSPORTS

RAD 9"X17" ET -7 BBS VERSION 2005 ALLOY RIM

805 Felge 11x18 ET10 VA Rim E86

806 Felge 10,75x18 ET5 HARim E86

Wheel Technology:

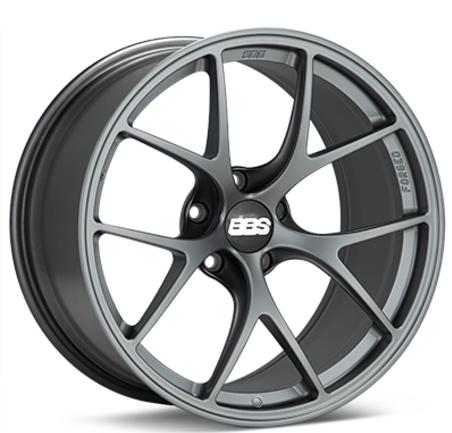

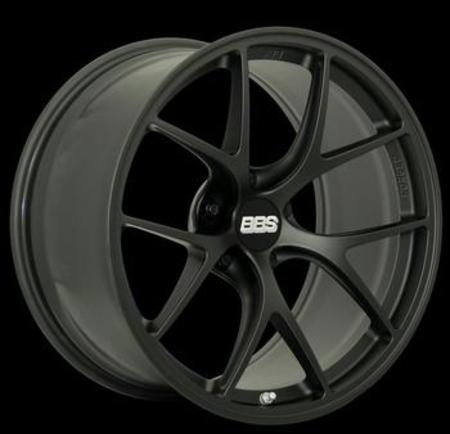

FI - BMW - One Piece Forged Aluminum Wheels designed and produced in the Motorsports department. The ultimate wheels for performance minded BMW owners. Covered by U.S. Pat. D606,921 and European OHIM Reg. No. 000 803 952


BBS Fi 19 Inch Wheel Weight Approximately 18 pounds. Cost per wheel: $2,095.00

BBS Fi 20 Inch Wheel Weight Approximately NA pounds. Cost per wheel: $2,560.00


Part / Finish Size Bolt Circle ET Wt. (lbs) CB MSRP
FI 021 - BG   19 x 9.5 5-120 28 18.3 72.5 $2,095.00
FI 021 - TI     19 x 9.5 5-120 28 18.3 72.5 $2,095.00
FI 021 - BS    19 x 9.5 5-120 28 18.3 72.5 $2,095.00
FI 022 - BG   19 x 10.5 5-120 23 19.7 72.5 $2,095.00
FI 022 - TI     19 x 10.5 5-120 23 19.7 72.5 $2,095.00
FI 022 - BS    19 x 10.5 5-120 23 19.7 72.5 $2,095.00
FI029 - BG     20 x 9.5 5-120 26 19.45 72.5 $2,560.00
FI029 - TI       20 x 9.5 5-120 26 19.45 72.5 $2,560.00
FI029 - BS     20 x 9.5 5-120 26 19.45 72.5 $2,560.00
FI030 - BG     20 x 10.5 5-120 28 21 72.5 $2,560.00
FI030 - TI      20 x 10.5 5-120 28 21 72.5 $2,560.00
FI030 - BS     20 x 10.5 5-120 28 21 72.5 $2,560.00
